Tracking Iframes: How to Track Conversions in Iframes with Google Tag Manager

Are you having a hard time tracking iframes from third parties on your website?

In this post, I’ll go over how to track conversions through iframes with the help of our favorite tool: Google Tag Manager.

What we will cover in this guide:

Sign up to the FREE GTM for Beginners Course...

What are Iframes?

An iframe (short for “inline frame”) is effectively a website that loads within another website. (Woahโ€ฆinception.)

Have you ever used PayPal to charge clients on your website? Or added a Facebook share button to your blog post?

These are good examples of iframes you might be using already!

The iframe is a secure way for users to interact with third-party websites without leaving your website.

How does this work?

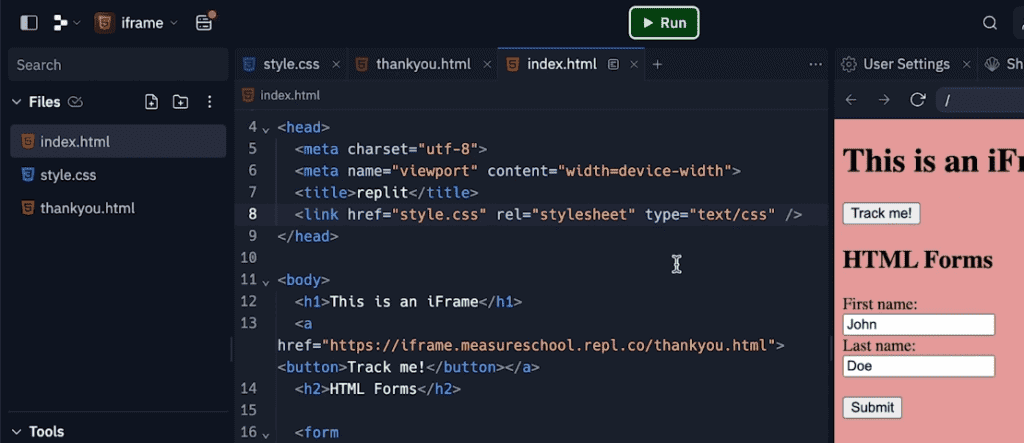

The iframe HTML includes the source website and the dimensions of the iframe, plus any additional style or functionality code.

For example, an iframe could be written like this:

<iframe src="https://measureschool.com/" height="300px" width="900px"></iframe>

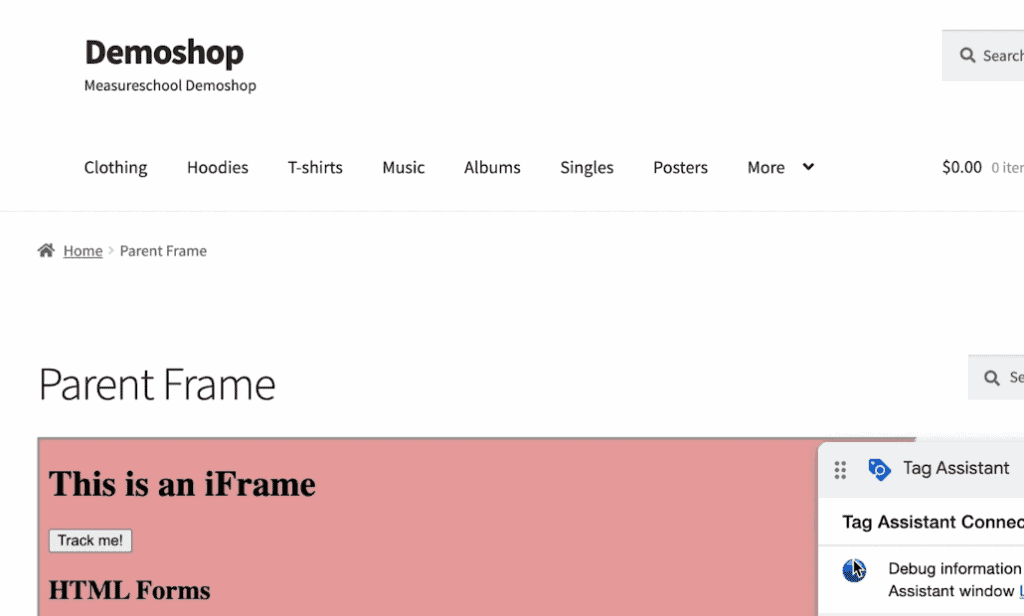

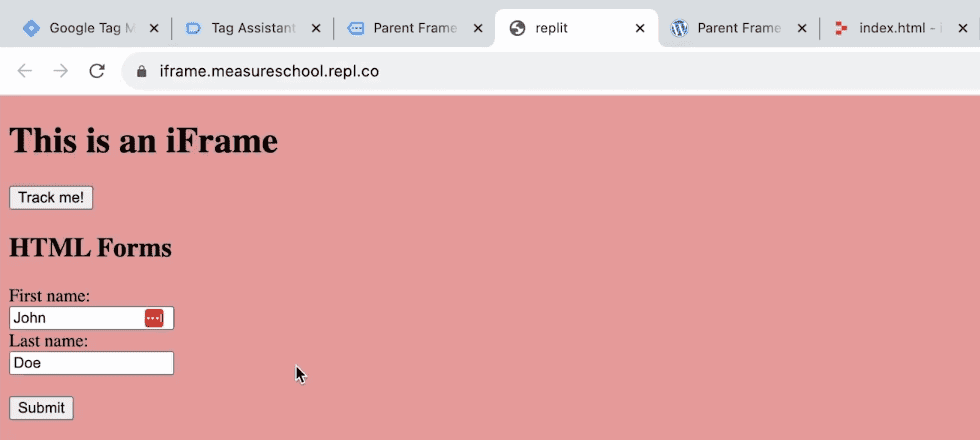

And appear like this:

The Problem with Tracking Iframes

The iframe contains another website, so unless you are the owner of the website in your iframe, you won’t be able to do any tracking at all. Sad times.

If you want to track an iframe, make sure that you will have developer access to the website inside your iframe. If you already have Google Tag Manager installed, then even better.

๐Ÿšจ Note: To reiterate, you need developer access to the iframe in question. This means the source websiteโ€™s code, not the iframe HTML on your website. 80% of the cases I see where people are struggling with tracking iframes are simply not possible. Without access to the iframe in question, you cannot install any tracking code.

Inspecting Iframes for Tracking

Not sure if your page element is an iframe? You can do a simple check on the frontend of your website.

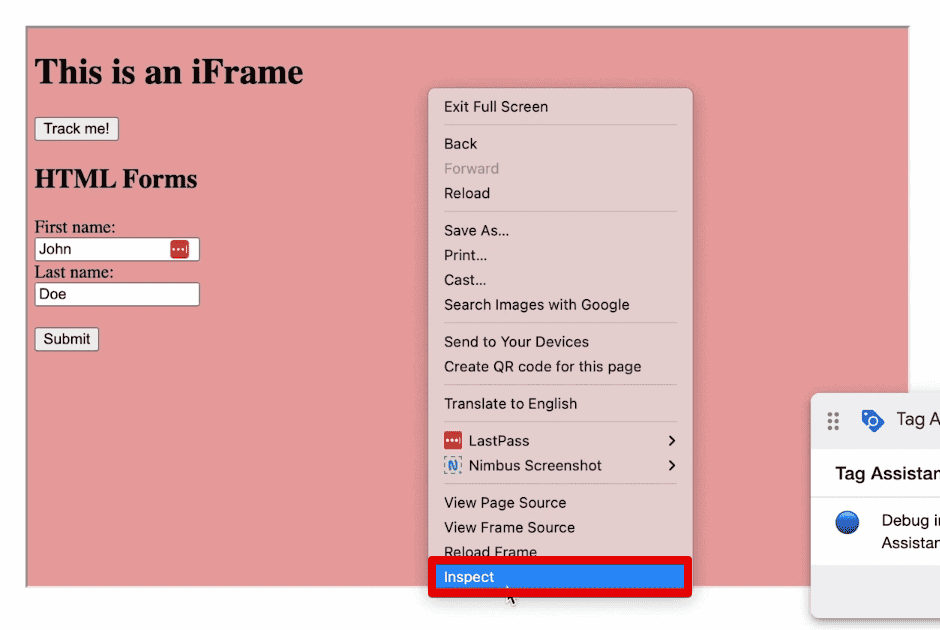

To inspect a page element, right-click (or control-click for Mac) wherever you suspect thereโ€™s an iframe. If you see the option View Frame Source, then the element is an iframe.

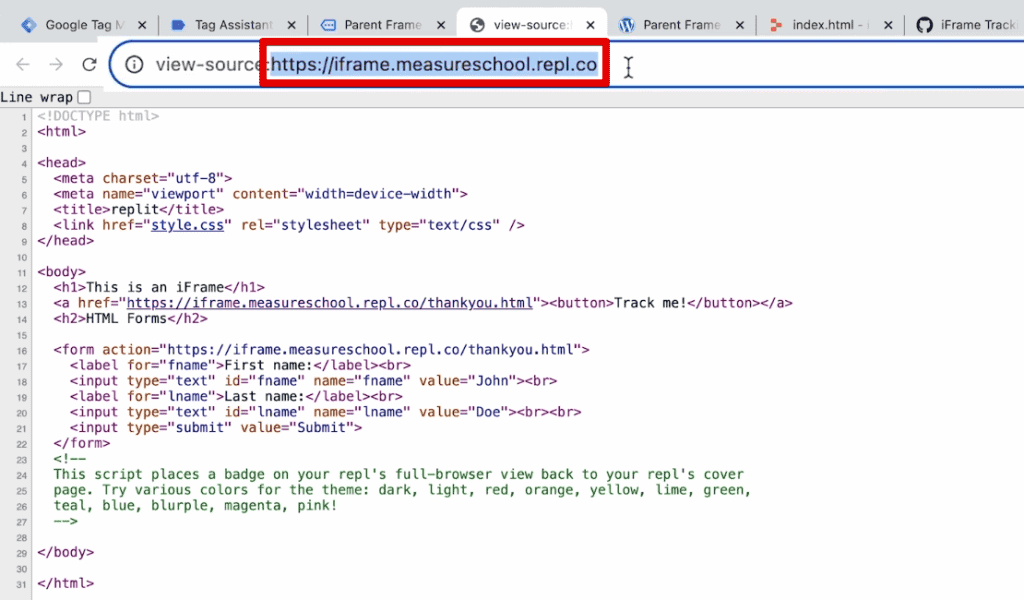

If you click View Frame Source, youโ€™ll see the HTML code for the source website (the child frame), which will look different from the code for the web page youโ€™re on (the parent frame).

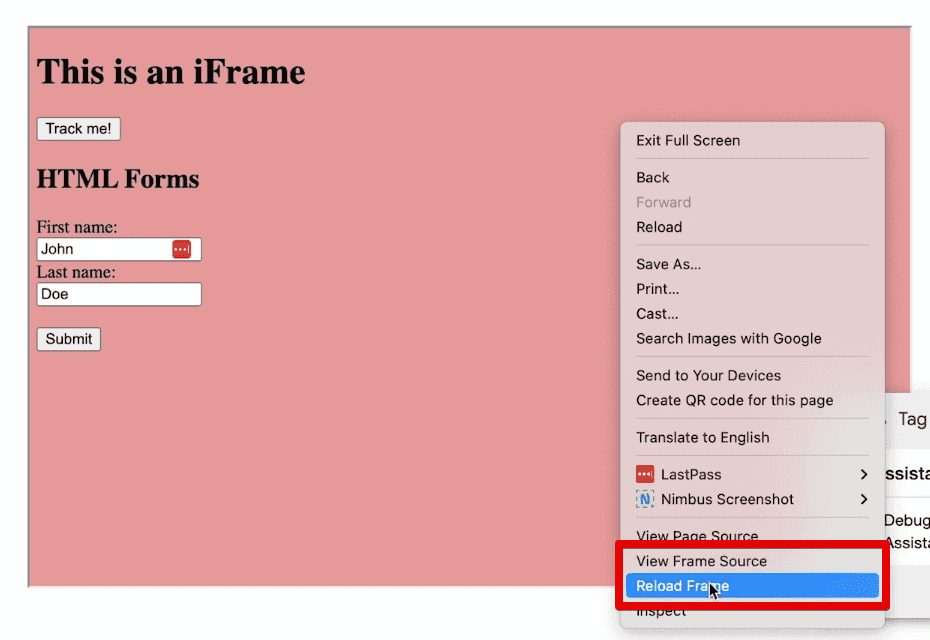

Inspecting iframe element by right-clicking and selecting View Frame Source

How to Push Data From Your Iframe to Your Parent Frame

You can track iframe interactions by sending a Javascript call called postMessage from the iframe to the parent frame. The parent frame listens to the call with Google Tag Manager, then forwards it to your marketing tools.

If that sounds complicated, I promise itโ€™s not. Hereโ€™s an overview of how that works in more detail.

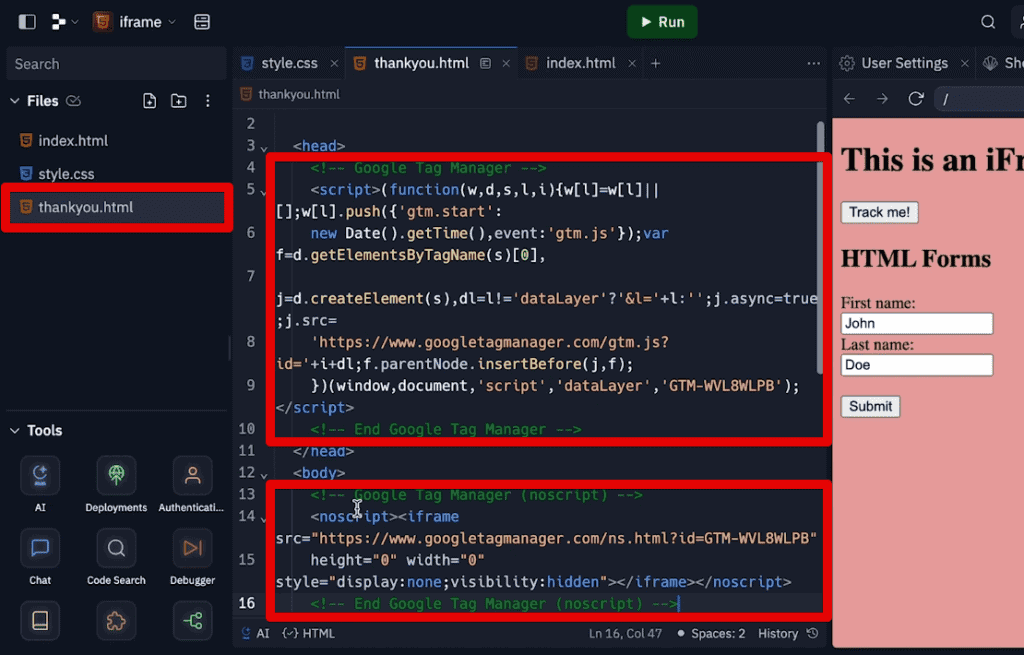

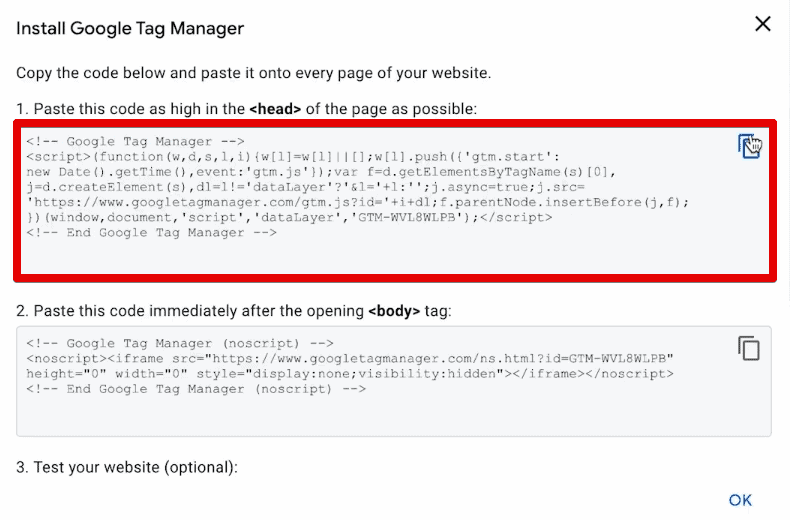

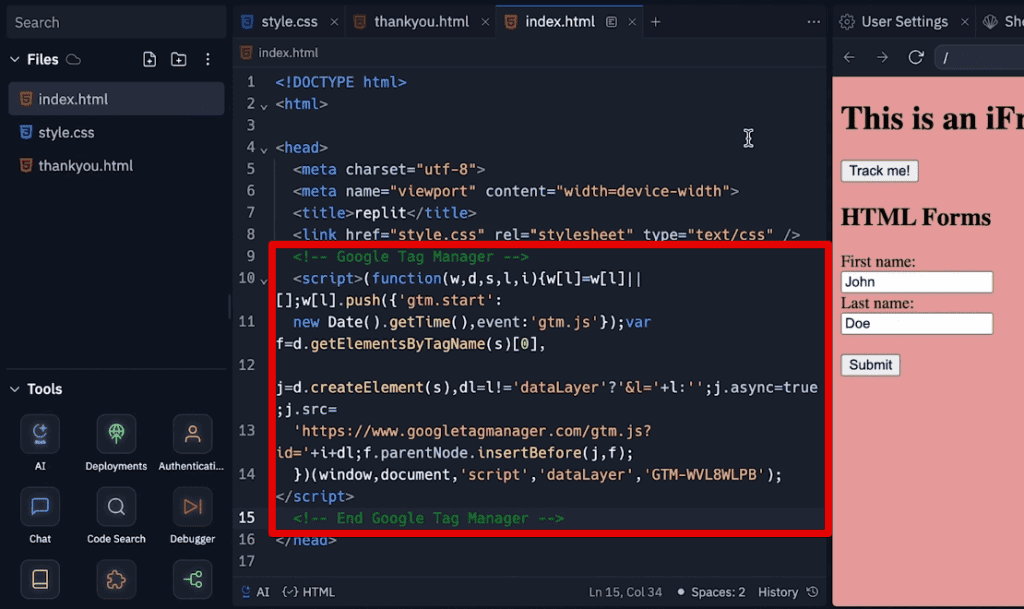

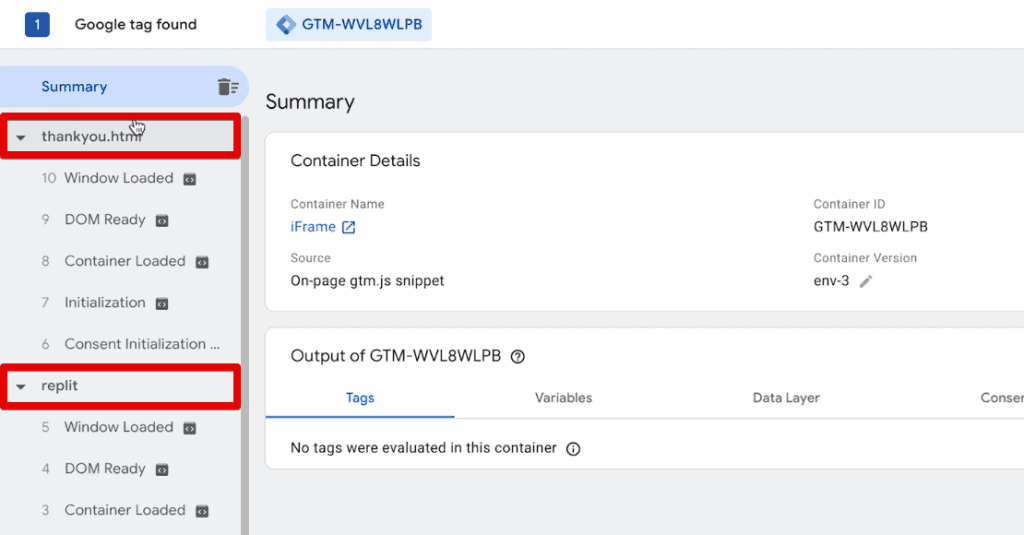

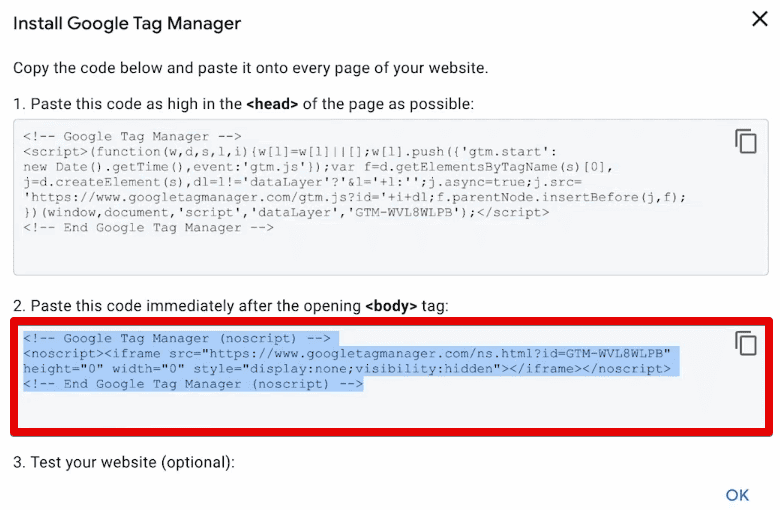

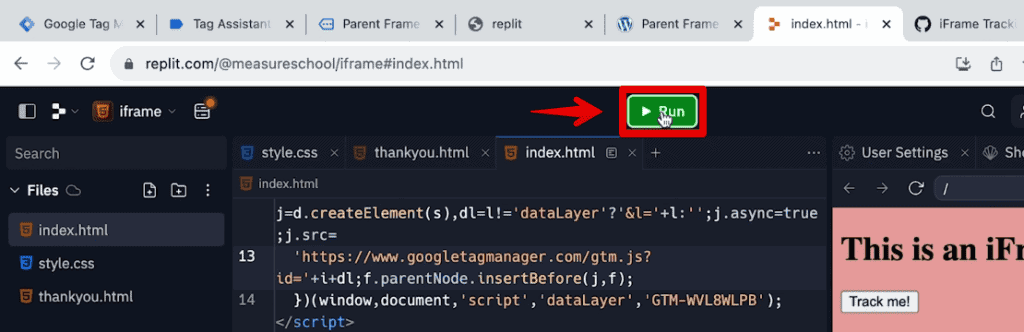

Install GTM on Your Child Iframe

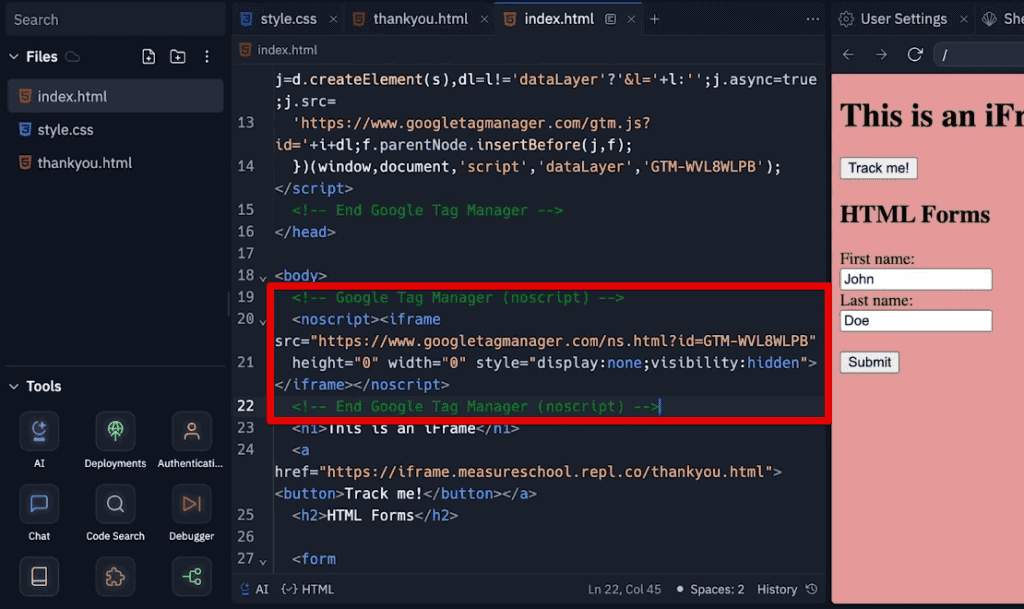

Even if you already have GTM installed on the website that contains the iframe, it wonโ€™t be able to pick up any user interactions that occur inside the iframe.

So if you want to track any form submissions, button clicks, or element visibility in your iframe, you need to also install GTM onto your child frame.

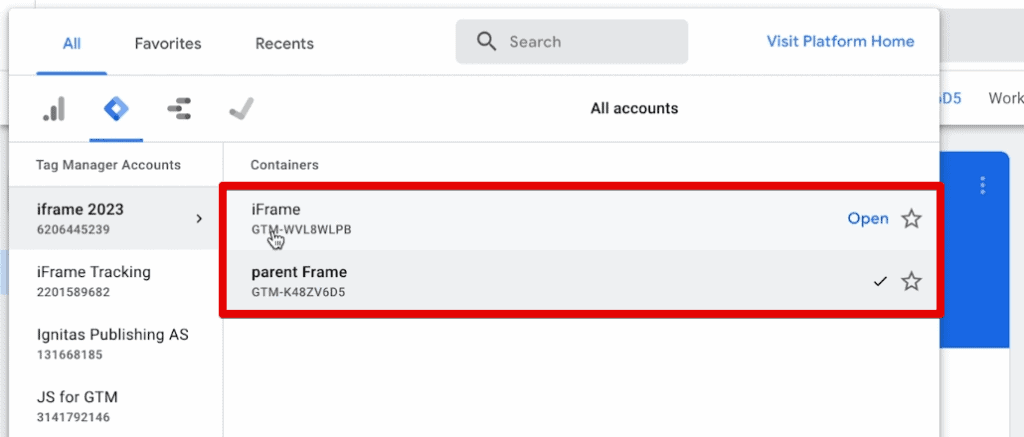

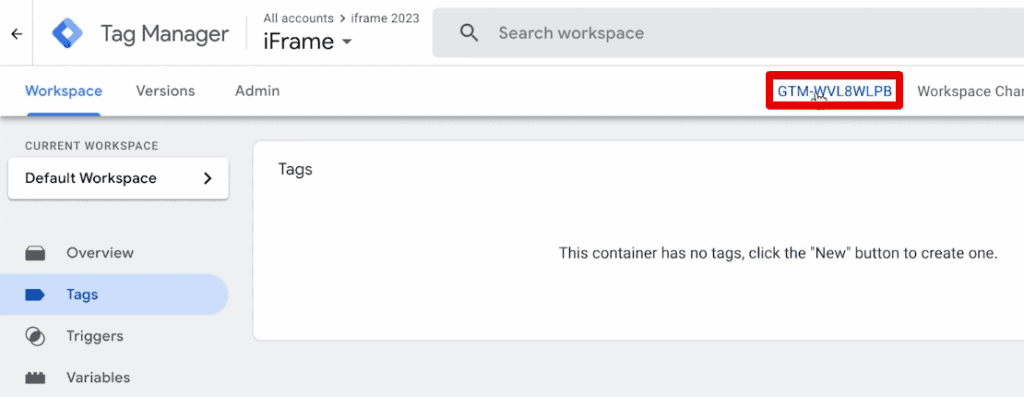

The important part here is that you should create a new Google Tag Manager account to associate with your child frame.

This doesnโ€™t mean you need a separate Google login, but youโ€™ll want a GTM account and container that are specific to your child frame. Your parent frame should have its own account and container.

If you donโ€™t already have GTM installed on your parent frame (primary website), then check out our GTM Installation Guide to get started.

Inspect Your Iframe Elements

Next, youโ€™ll have to decide which user actions you want to track inside your iframe.

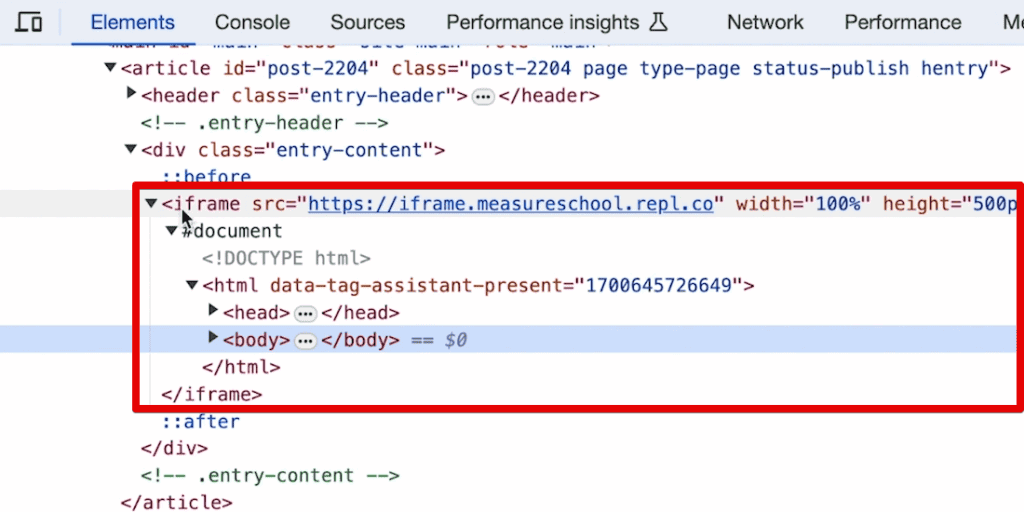

Remember how we checked our iframe code earlier? Hereโ€™s where this comes in handy. Right-click on your iframe and select View Frame Source.

Here, youโ€™ll be able to find any identifying information about the element you want to track. If you want to track a form submission, you might look for a form ID. If itโ€™s a button click, you might look for click text or a click class.

Once youโ€™ve found an identifier that will help you track this element (without tracking incorrect elements), copy it. Weโ€™ll need it in order to build a Tag trigger.

Identifying a unique variable for the iframe element using the browser developer tools

Create a Trigger for Your Iframe Element

In your child frameโ€™s GTM account, youโ€™ll build a new trigger using the element identifier you just found.

The type of trigger you use will depend on what you want to track. Select the trigger type that best fits your iframe element.

There are other type-specific options that youโ€™ll have to decide on, but the important part here is to make sure that the trigger fires when your variable matches the element identifier.

In this example, the iframe contains a form, so we want the trigger to fire when the following condition is true: Form ID equals ninja_forms_form_1.

iframe trigger configuration for form submission, fires for some forms when Form ID equals ninja_forms_form_1

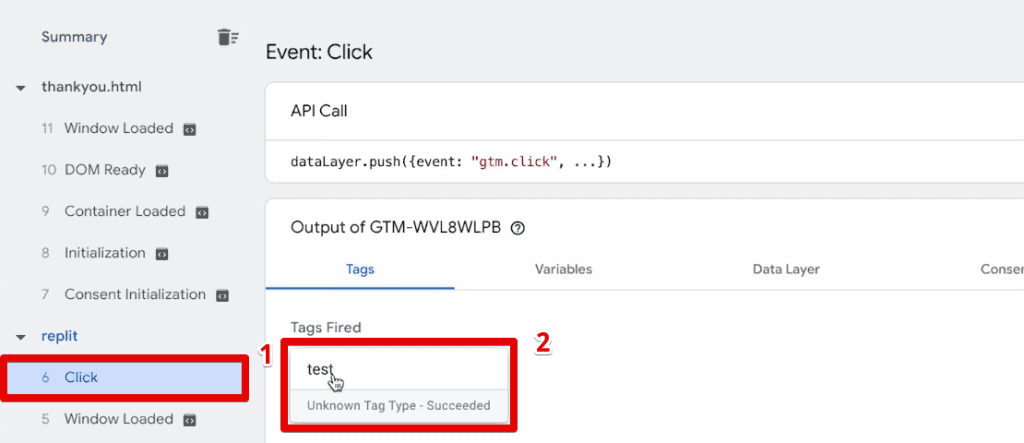

This ensures that the trigger will always fire when a user makes the action you want to track, but it doesnโ€™t fire when the user interacts with the iframe in other ways.

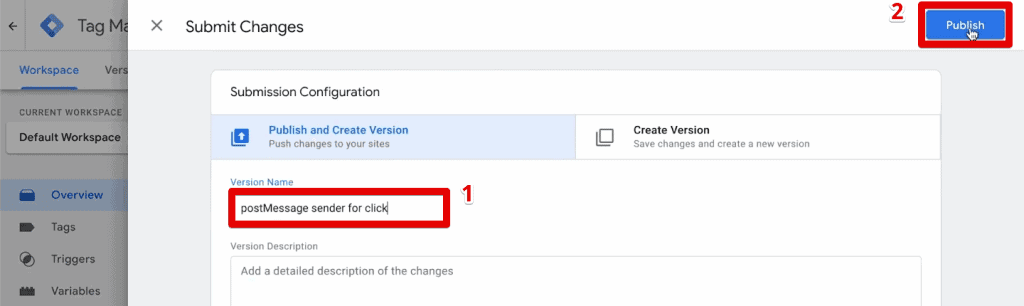

Send Child Frame Data to Parent Frame

The next step is to connect this trigger to a Tag.

However, we donโ€™t want to send it directly to Google Analytics or other tools.

Why? Because the interaction would be tracked as coming from the frameโ€™s source websiteโ€”not from our webpage with the iframe.

If you use your new trigger to send data directly to your tracking tool, you wonโ€™t be able to differentiate users who converted on embedded iframe versus the original source website.

This is important for tracking a userโ€™s path to converting. For marketing purposes, it should matter to you where your user was in your funnel when they converted.

And thatโ€™s why weโ€™re going to send the data to our parent frame with the help of Google Tag Manager.

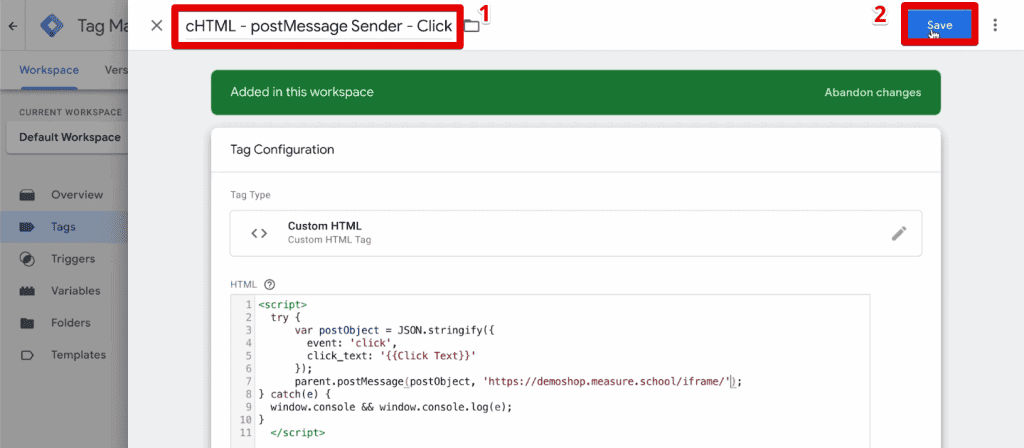

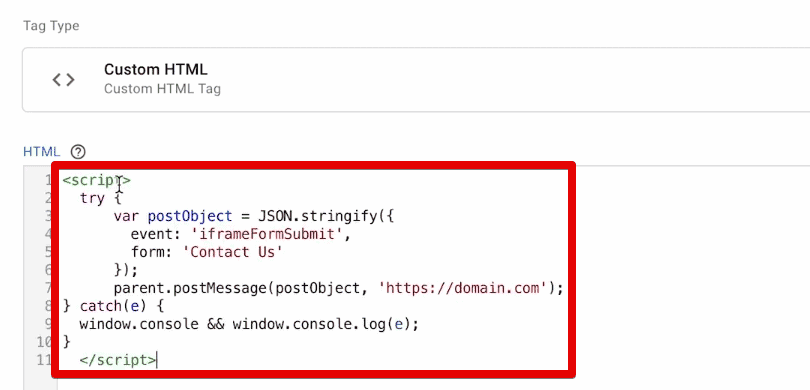

In order to do this, we need a special sender Tag for our postMessage that forwards tracking data to the parent frame.

custom HTML tag configuration for postMessage sender

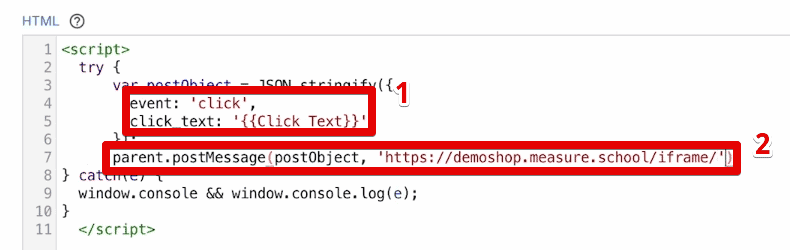

This requires a custom HTML tag. Iโ€™ve built one that you can download and import straight into your GTM container here.

Basically, this script consists of a Data Layer push for any key value pairs that you want to track. If youโ€™re comfortable with HTML, you can customize this as much as you like.

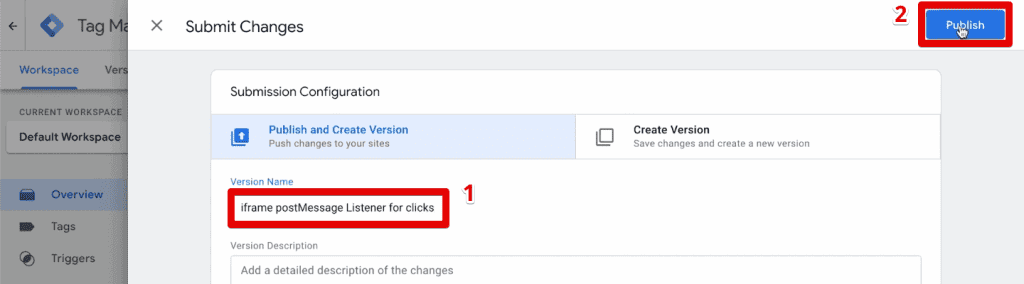

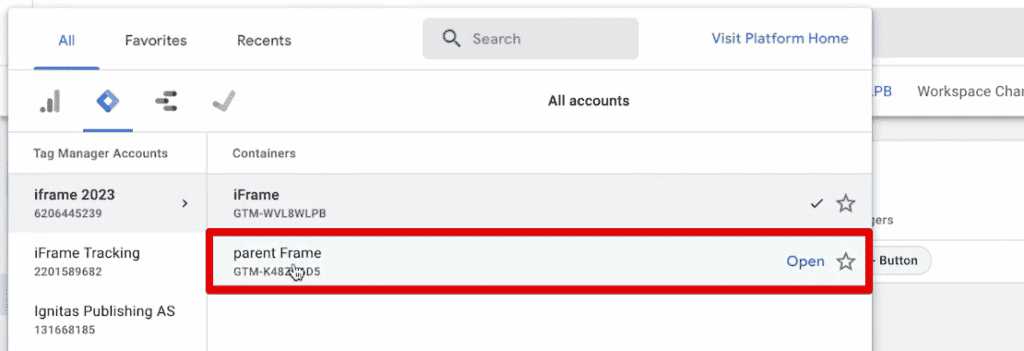

Build a Listener in the Parent GTM Account

So now our iframe will send tracking data to the parent frame, but that data is totally lost into the internet ether if the parent frame doesnโ€™t know to listen for that data.

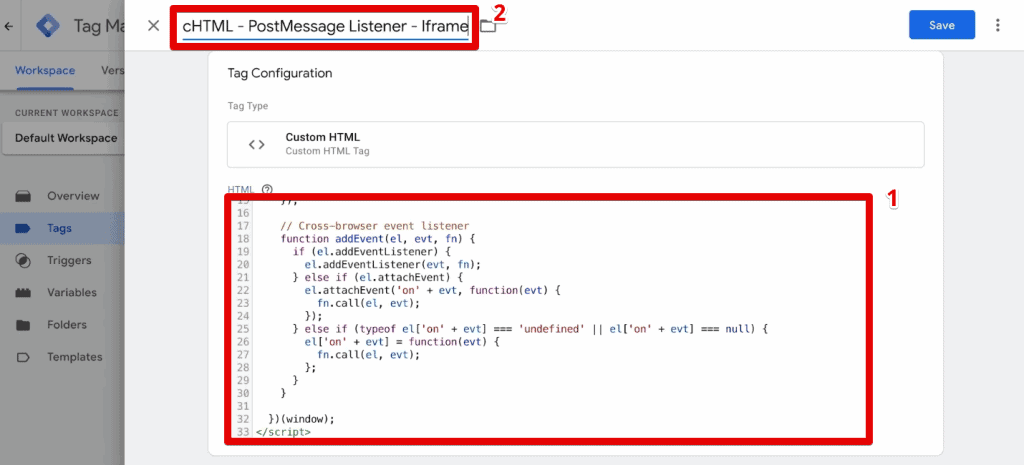

Which leads us to our next step: building a listener tag in your parent frameโ€™s GTM account.

The idea here is that a Tag on your parent frame (host website) fires a Tag in conjunction with the iframeโ€™s Tag.

The parent frameโ€™s Tag basically just listens for the iframeโ€™s Tag, extracts the information in the postMessage, and pushes that information it to the Data Layer.

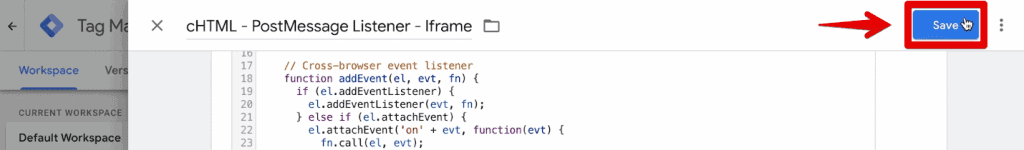

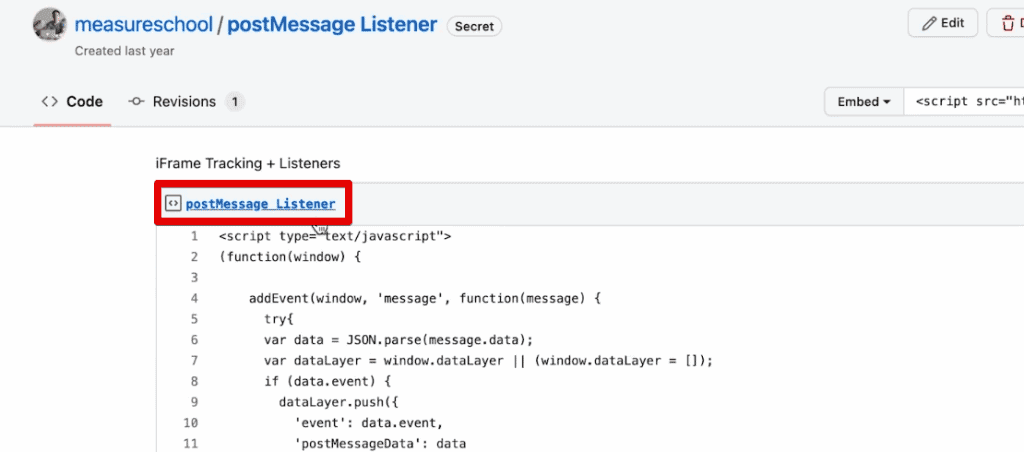

custom HTML tag configuration for postMessage listener

Again, this requires some custom HTML, which I have a template for here (same link as above).

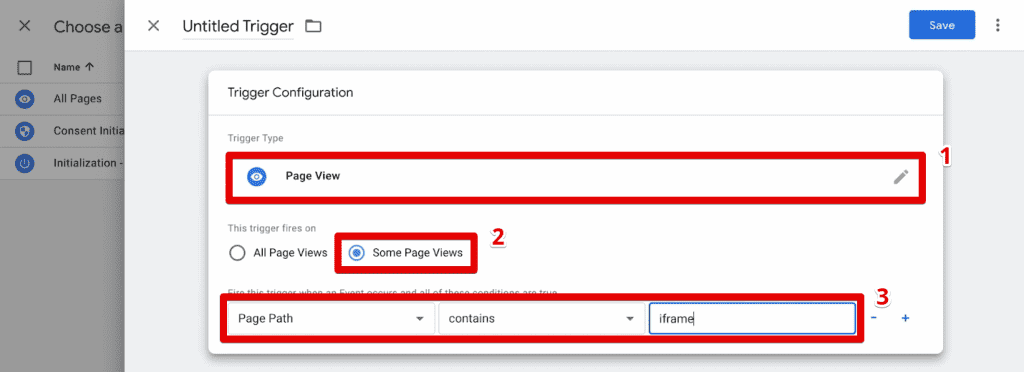

As for the trigger, youโ€™ll typically choose a Page View just for the page with this iframe. Itโ€™s less script for irrelevant pages to load, and it cleans up your tracking data.

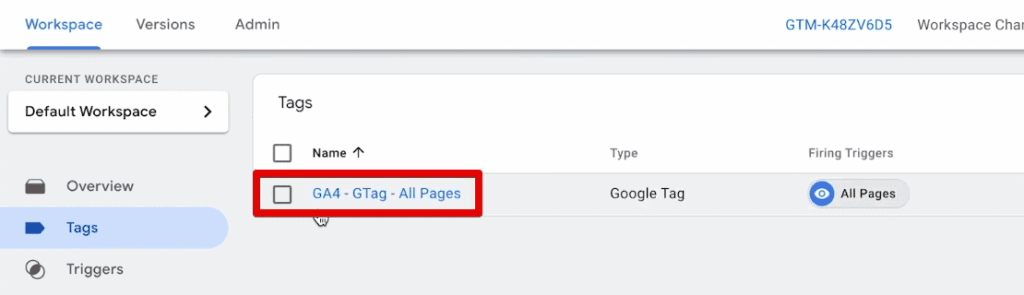

Send Iframe Data to Google Analytics

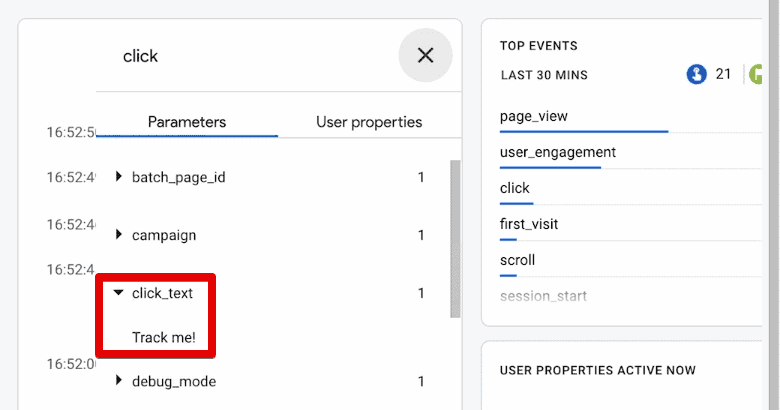

Now that everything you want to track is available in the Data Layer of your parent frame, you can send your iframe data to tools like Google Analytics.

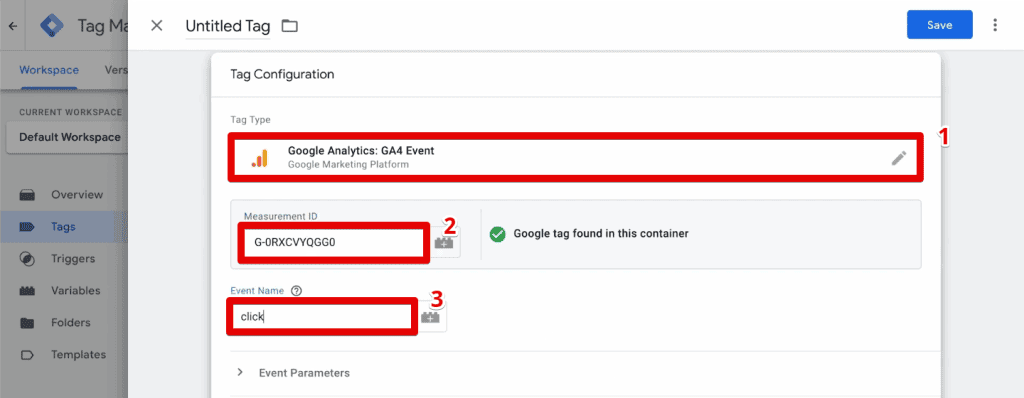

In the parent GTM container, you can create an event Tag that identifies the user action in the iframe using whatever parameters best suit your tracking setup.

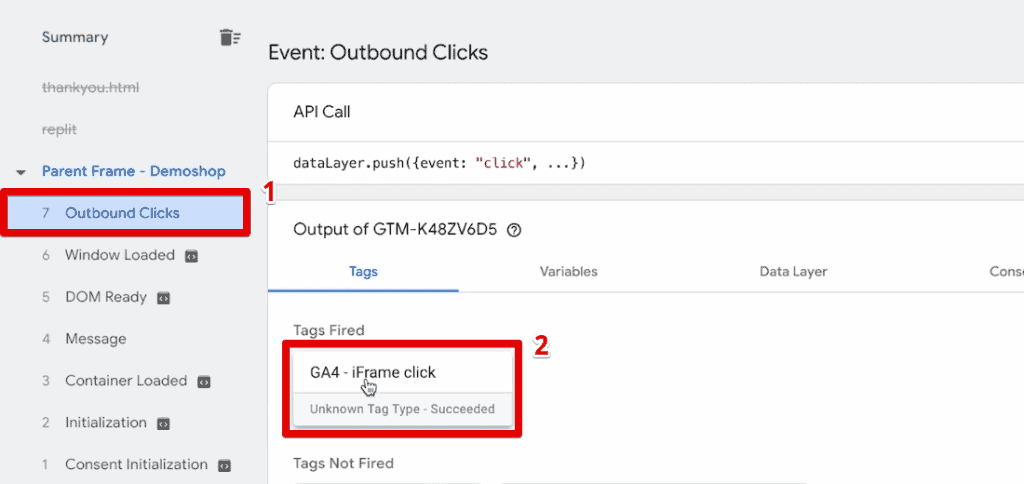

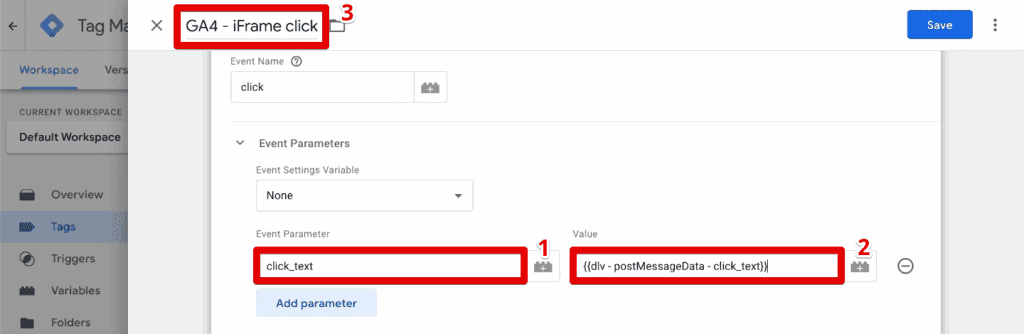

Google Analytics iframe form submission event Tag configuration

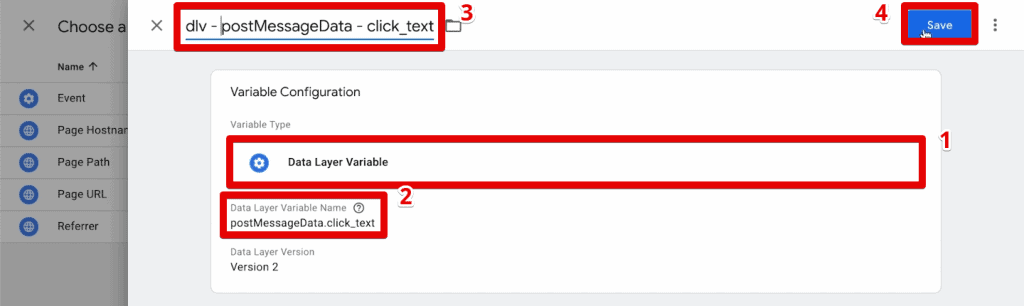

Make sure that any new variables that you create for your parameters match the variables in your Data Layer with correct dot notation.

You will also need a new custom event trigger that fires when the event name for your iframe element appears in the Data Layer.

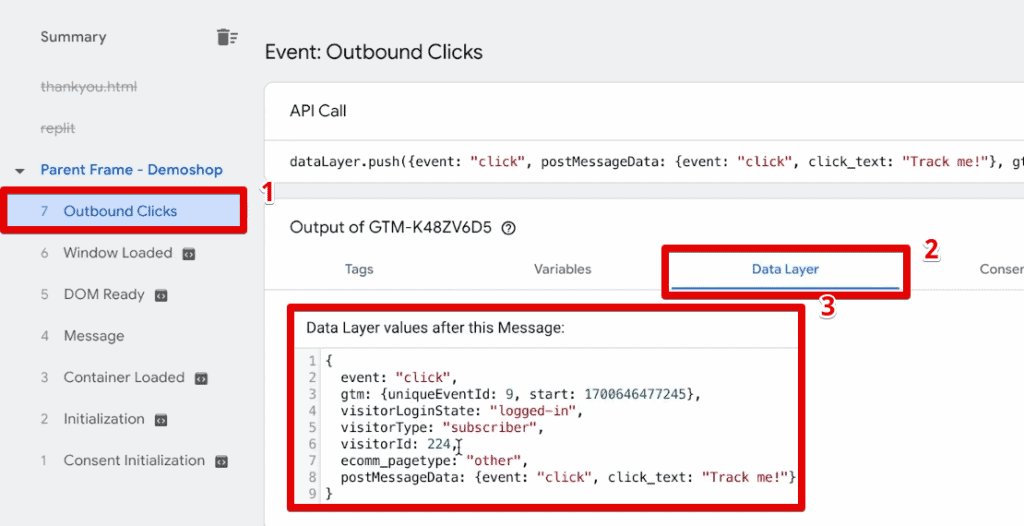

iframe event Data Layer contents, including event name and postMessageData

This is how we can send data from an inner iframe to the parent frame, then send this data over to our marketing tools like Google Analytics.

Congrats! Once this is deployed, you should be able to successfully track conversions through iframes with Google Tag Manager.

What Other Tracking Can You Do in Iframes?

The sky is really the limit in terms of what you can track in your iframe!

This post discusses setting up iframe tracking for a conversion, but the same principles apply for tracking any other user actions.

Now that you know how to set up iframe tracking, you can apply this technique to other trackables in your iframes.

See some other guides to learn how to track:

Summary

Alright, there you have it. This is how you can track conversions through iframes with the help of Google Tag Manager.

Although you have to jump through some extra hoops, hopefully, this post showed you that tracking iframes isn’t so hard to do!

If you wanted to download the code snippets that we used in the video, we have made a template for you that you can download and import right into your Google Tag Manager container!

How do you use iframes on your website? What are some of your favorite use cases in tracking? Leave us an answer (and any questions) in the comments!
